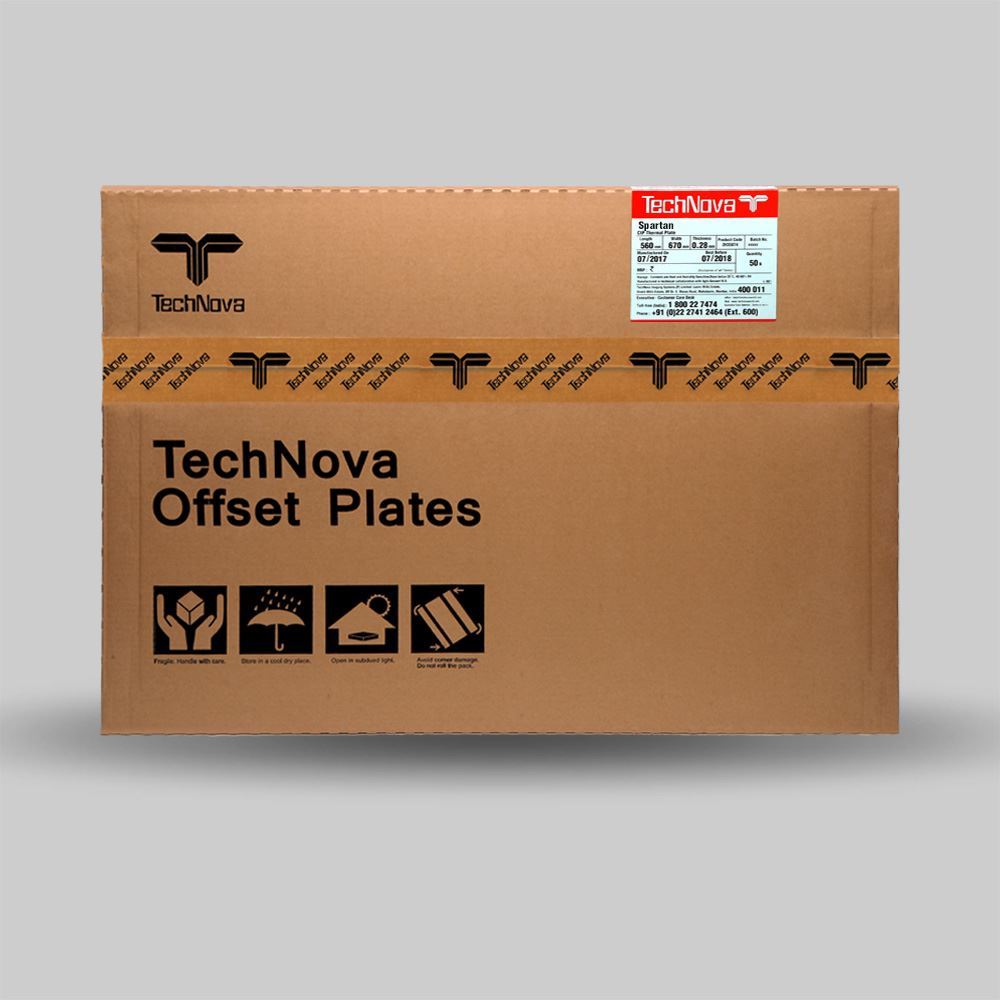

Picture of Spartan
UV CtP Plates , Third Generation UV CtP Plate, Fastest UV CtP plate

Spartan

Rugged third-generation UV CtP plate for demanding press runs

Spartan is a third generation UV CtP plate especially designed for hi-resolution, hi-speed imaging on the latest UV CtP plate setters using Ultra-Violet laser diode technology. It is significantly superior to the second generation UV CtP plate. Spartan ensures reproduction of 2%-98% dots at 200 lpi and is FM screening capable.

(Note: Not recommended for use as Analog PS Plate)

Spartan - Brochure
    • Significantly faster as compared to second generation UV CtP plate yielding high throughput.
    • Excellent Image contrast facilitates easy inspection
    • Better exposure and processor latitude deliver consistent results
    • Very good resistance to alcohol and press chemicals ensuring robust press performance
    • Compatible to baking process with Thermotect/ RC510 to increase run-length
    • Each plate carries a unique identification number for quality assurance
    • Storage & Handling : 20oC - 25oC; 30% to 70% RH. If the storage temperature differs significantly from plateroom temperature, the plates should be acclimatized in their original packaging, for at least 12 hours before unpacking and processing the plates. Always open the package under recommended room illumination.
    • Recommended plateroom conditions : Operating temperatures 23oC (±2oC); 40% to 70% RH.
    • Shelf-life : 18 months (from the date of manufacturing) under recommended storage conditions.
  • Products specifications
    Attribute name Attribute value
    Plate Type UV CtP Positive-working
    Substrate Litho-grade aluminium, electrochemically grained and anodized
    Gauge (mm) 0.15, 0.20 , 0.28, 0.30
    Width (mm) 1230
    Safe light Yellow Safe light & UV protection on windows
    Spectral Sensitivity 405 nm Ultra-Violet laser diode compatible
    Image Color Blue
    Run-length Upto 100,000 impressions (Actual run-length may vary according to press conditions, ink & paper quality)
    Exposure Energy 40 mw to 55 mw
    Manual Processing Not recommended
    Machine Processing Spartan / LSP 19 Developer with recommended dilution to be used on processors with chiller unit
    Deletion NovaDelete P / Jiffy Deletion Fluid
    Finishers Unifin/RC795
    Baking Solution Thermotect/RC510
    Plate Cleaner lnstaKleen CtP, Instakleen HD (for Baked plates)
    Storage after Processing Unifin for storage up to 24 hours; NovaKeepGum for storage up to 3 months.
    Press Wash Compatible with all recommended washes from TechNova
    Press Care Compatible with all recommended Presscare solutions from TechNova
    Fountain Solution Compatible with all recommended fountain solutions and fount additives fromTechNova, except IPA substitutes. Post baking plates are compatible with IPA substitutes.
