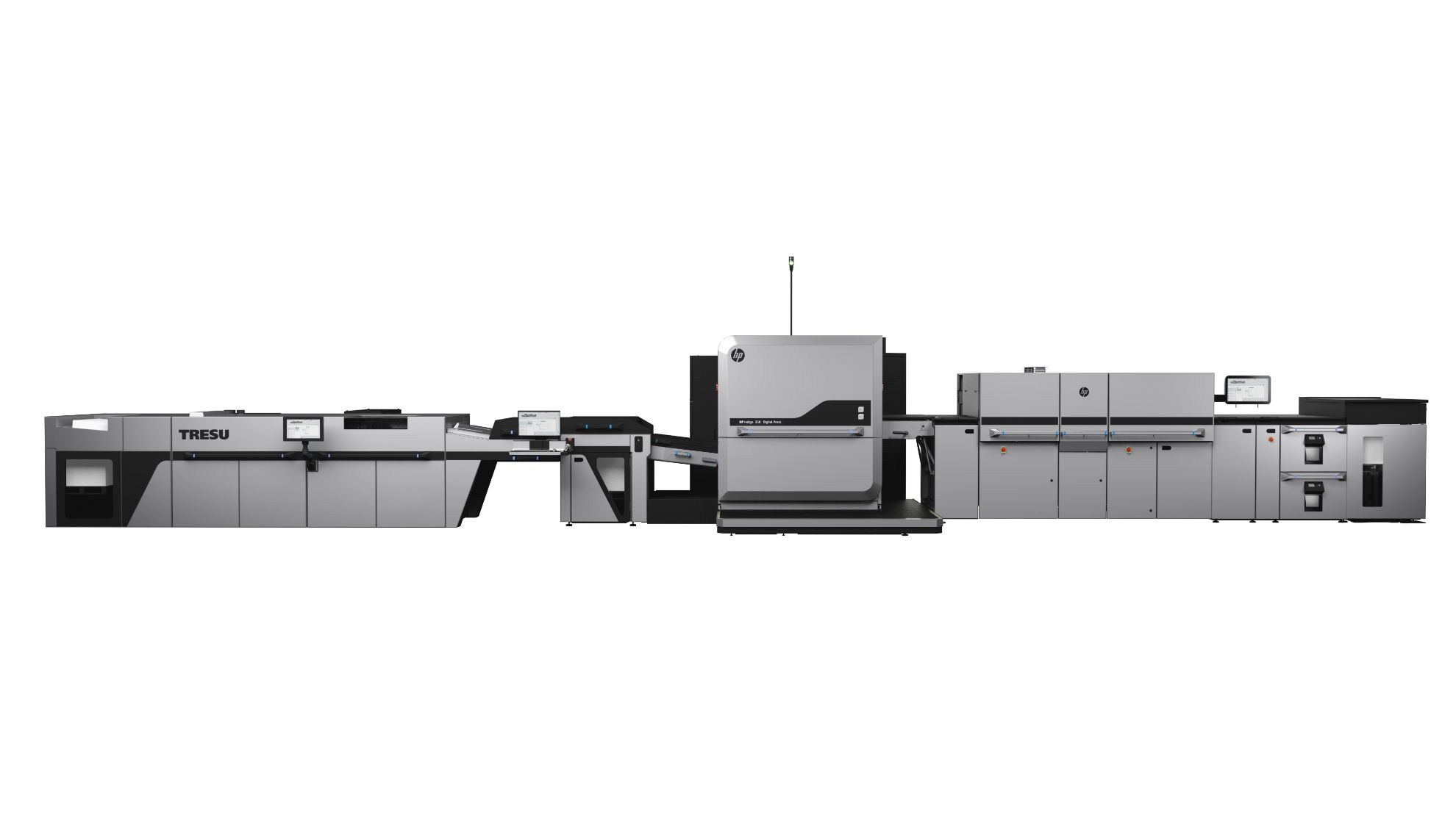

HP Indigo 35K Digital Press

Build a high growth profitable business with the step-function press HP Indigo 35K , for short run folding cartons delivered in faster turnarounds & enhanced high value features.

The future unfolds

Gain on high-growth business with the step-functionpress for short run folding cartons.There’s a growing appetite for boxes that go beyond basic. Consumers are increasingly in control, judging brands by their product authenticity, sustainability, and level of engagement. This shift in buyer influence is driving brands toward greater environmental responsibility, more SKUs, personalization, and faster time-to-market.

Today’s jobs are just different. The playing field has been turned on its head. Small/craft brands act big and mega brands act agile. As a Folding Carton converter, you need to cater to both ends of the spectrum—from strategic mini-scale runs to boxes that comply with rapidly changing regulations.

Your job basket is varied and changing. Forecasting is becoming almost impossible. You need the ability to quickly maneuver and turn on a dime, without hesitation. Boxes with digital features are in hot demand, and there’s no sign of this trend cooling off any time soon.



  • Own the high-value market with wide application range

    Produce dozens of jobs per day and up to 1 million B2 sheets per month, by leveraging new tools to increase print time by up to 40%.2 Gain real production agility with drawers, a pallet feeder, and a proof tray on a B2 format. Adapt to changing market needs with one press that does the work of three. Expand your applications with the widest range of media and inks.4 Offer high-accuracy embellishment features, inline with the TRESU iCoat II.

      • Expand your offering with off-the-shelf boards, from paperboards, through metalized and synthetics media, to high-end colored substrates.
      • Add inline high quality UV/WB coating, including high-accuracy decoration, with the TRESU iCoat II.
      • Expand into digital rigid box applications with lightweight media ranging from 150 microns.
      • Offer value added packages with multi-layered brand protection solutions and unique designs by HP SmartStream Mosaic and HP SmartStream Collage.

    Optimize production efficiency by shifting to a digital mindset

    Own the high-value market with wide application range Produce dozens of jobs per day and up to 1 million B2 sheets per month, by leveraging new tools to increase print time by up to 40%.2 Gain real production agility with drawers, a pallet feeder, and a proof tray on a B2 format

      • Meet very short turnaround times with a B2 format ideal for short runs— saving half the converting waste and cost compared to B1
      • Easily transition from one job to the next with drawers, pallet feeder, and proof-while-you-print capabilities
      • Significantly reduce setup with fastest time-to-color enabled by the HP Indigo Spot Master automated color-matching process
      • Full line coupling for streamlined production with a quick job and varnish changeover with the iCoat II, designed for easy maintenance and tool-less operation.
      • An end-to-end approach with inline priming, fully coupled coater, and the HP PrintOSX workflow ecosystem.

    Deliver on the highest quality to meet premium brands’ requirements

    Meet the most stringent brand color and quality needs in each and every job you deliver with newly introduced automated tools and the HD Imaging System.

      • Achieve up to 97% PANTONE® gamut on press using CMYK, OVG, and spot colors
      • Get interchangeable offset quality— with thin layers—with HP Indigo Liquid Electrophotography (LEP) Technology.
      • Produce even smoother color tints, more detailed small image, and finer small/micro text with the HD Imaging System.
      • Offer confidence in color performance with the automated tools and reporting system. Easily reach and maintain color to ensure that every box is the same, wherever and whenever printed.
  • Products specifications
    Attribute name Attribute value
    Speed 3450 sheets per hour 4/0; 4600 sheets per hour EPM
    Resolution 812 dpi addressability (virtual 2438 x 2438 dpi)
    Spec1 Line screens: 175, 180, 180m, 190EPM, HMF-200
    Paper Size 29.5 in x 20.9 in (750 X 530 mm ) maximum
    Print/Non-print area 29.1 x 20.1 in (740 x 510 mm) maximum
    Substrate Thickness Paperboard and metallised boards 6 to 24 pt (140-600 microns); PVC and Polypropylene up to 25 pt (630 microns); PET up to 16 pt (400 microns)
    Substrates Paperboard, including C1S and C2S, virgin, recycled and metallised. Optional support for synthetics.
    Paper Weight Paperboard and metallised boards 150 to 450 gsm; PVC up to 880 gsm; Polypropylene up to 630 gsm; PET up to 550 gsm
    Feeder Palette feeder: Up to 33.4 in or 1100 lb (85 cm or 650 Kg) of media.Drawer feeder: two drawers, with 11.8 in (30 cm) of media.
    Stacker 25.2 in (64 cm) of media
    Spec3 HP Production Pro for Indigo Labels & Packaging
    Dimensions (L x W x H) Length: 11,500 mm; 18,000 mm including Icoat and LFI, Width: 433 in (4700 mm); Height: 94 in (2400 mm); Depth: 185 in
    Weight 28,600 lb (13,000 kg) Additional 3,000 kg liquids and consumables
    Ink HP Indigo ElectroInks , Standard 4-color printing-Cyan, Magenta, Yellow, and Black, 5-color printing- Cyan, Magenta, Yellow, Black, and White, HP IndiChrome 6-color printing- Cyan, Magenta, Yellow, Black, Orange, Violet, and Violet for packaging, HP IndiChrome Plus 7-color printing- Cyan, Magenta, Yellow, Black, Orange, Violet, Violet for packaging and Green, HP IndiChrome off-press spot inks- HP IndiChrome Ink Mixing Service for spot color creation using CMYK as well as Orange, Violet, Green, Reflex Blue, Rhodamine Red, Bright Yellow, and Transparent, PANTONE® colors- Supports PANTONE PLUS®, PANTONE MATCHING SYSTEM®, and PANTONE Goe™ HP Professional PANTONE Emulation Technology using CMYK on-press; HP IndiChrome on-press; HP IndiChrome Plus on-press; HP IndiChrome off-press (IMS) Ink Mixing Service for achieving up to 97% of the PANTONE,
