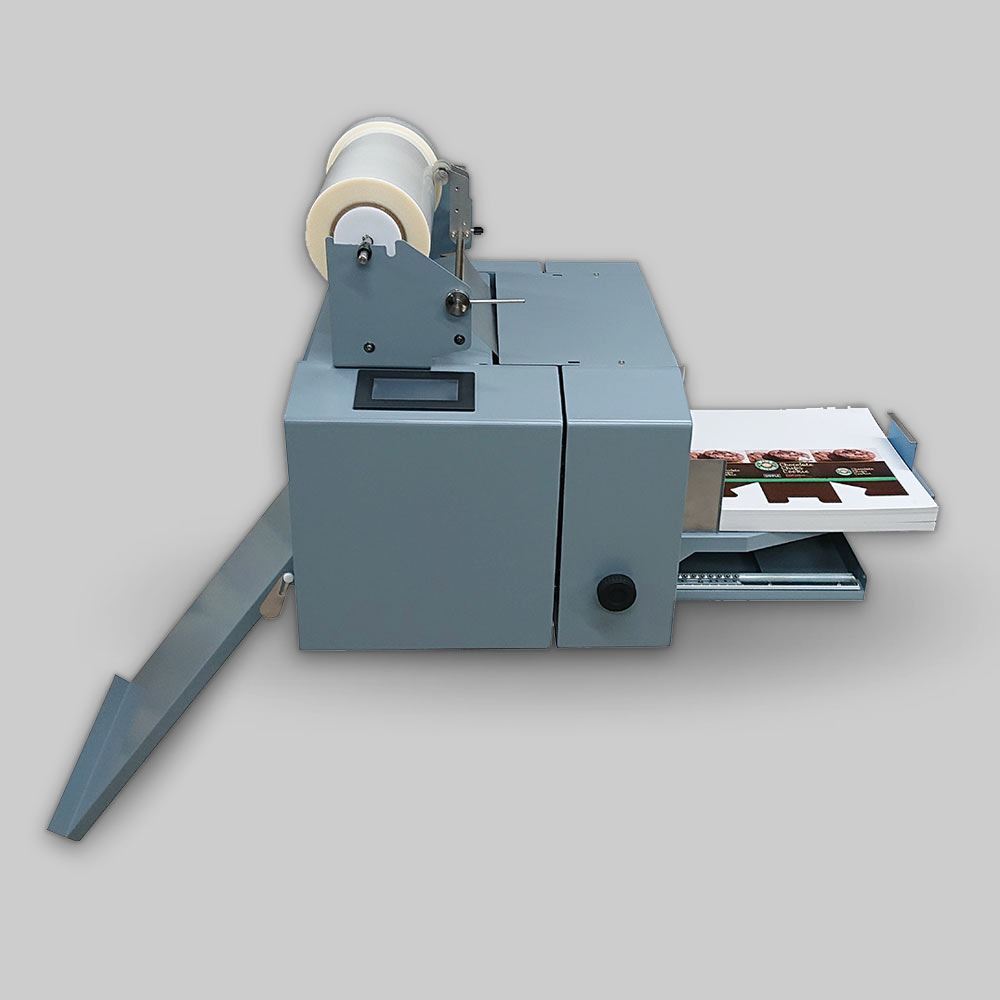

UCOS DC-XIII

Multi-dry coater with foil, spot gloss, dry coat & lamination options

The DC XII delivers a multi-purpose solution for print embellishment with the capability to dry coat, foil, and laminate in a single machine. Compact and easy to use, the DC XII utilizes a ceramic thermal roller and a heat control system to precisely apply the desired film on top of the sheet.

For gloss dry coating, the DC XII utilizes a specially-formulated film that applies full coverage on a sheet of a paper. When the film runs through the heat roller, the adhesive is melted and applied to sheet.

Without the need of investing in individual foil stamp dies, the DC XII uses a unique adhesive foil that sticks onto the toner used in most presses.

The DC XII comes standard with an automatic side-to-side flying knife separator system for precise flush cutting of laminated sheets. It also features a dust removing and de-curling system commonly seen in more expensive laminators.

  • ·          4-in-1 solution

    A. Hot Foiling

    B. Lamination

    C. Dry Coating

    D. Image Coating

    ·          Two-piece design for easy film setup and removal

    ·          Automatic air suction feed system

    ·          Handles up to 13" width sheets

    ·          Dust Removal Roller

    • Book Covers
    • Business Cards
    • Wedding Cards
    • Postcards
    • Direct Mailers
    • Brochures
    • Gift Envelope
    • Wedding Photographs
  • Products specifications
    Attribute name Attribute value
    Feeder Automatic, Air Suction System
    Hot Foiling Station Heat Roller System (90°C-160°C)
    Paper Size Foil: 5.8” x 8.3” - 13” x 24”
    Paper Weight 110-400gsm
    Speed Upto 15ppm
    Dimensions (L x W x H) 52” (W) x 22” (D) x 17” (H)
    Weight 62Kg
