JWEI R CUTTER RSF 330

Digital label cutter handling diverse self-adhesive media with accuracy and speed

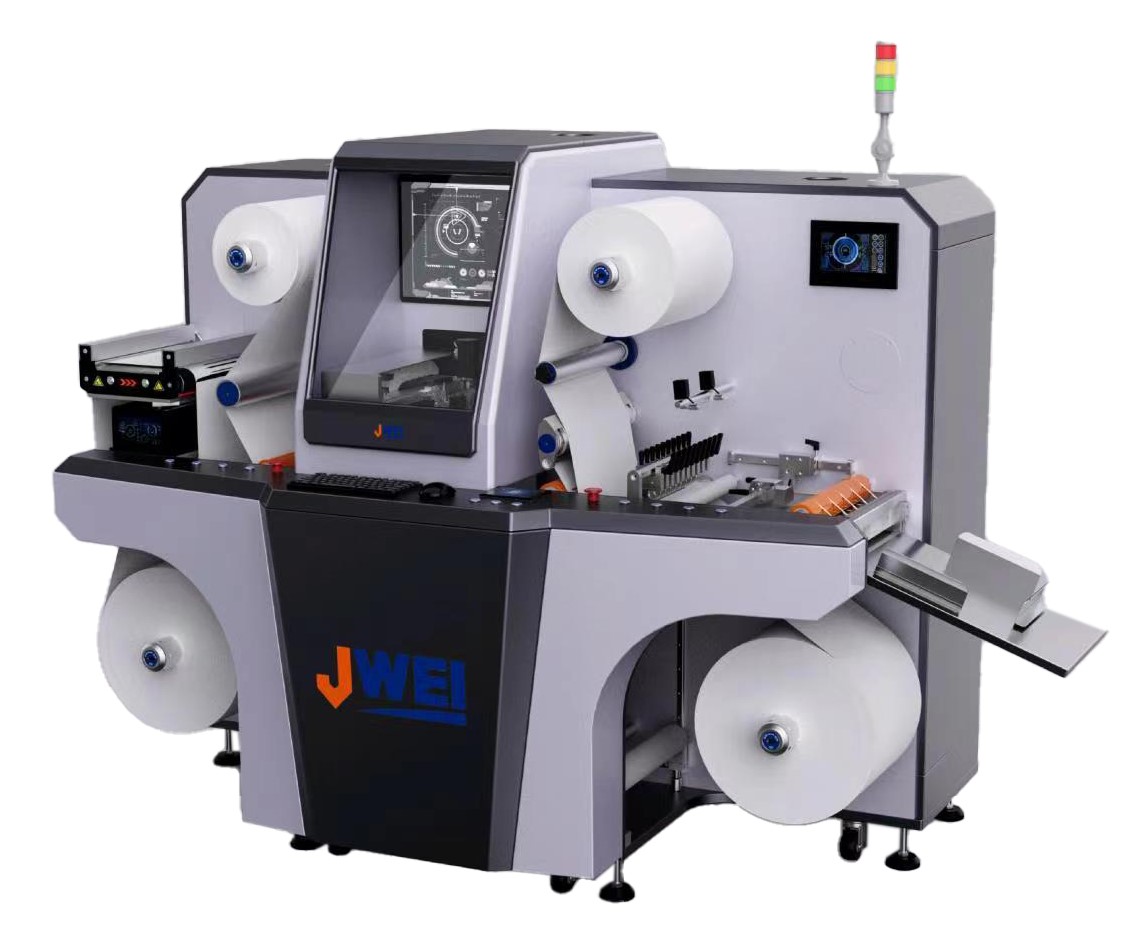

The label die cutter RSF-330 with eight cutting head

RSF-330 label die cutter compatible with a wide range of materials, can cut a variety of self-adhesive labels. it has the function of auto cutting heads allocation, no specific number of graphic columns required intelligent selection of the best cutting solution, Graphic free alignment, 8 cutting heads lead steps faster. the cutting wide of label die cutter is 330mm, and the 1000 mm long drum material can be placed on the feeding rod for automatic roll-to-roll and roll-to-sheet cutting, its workflow is full automatically, such as Auto deviation correction, Auto lamination, QR code recognition, Auto positioning, Auto continuous cutting, Auto winding, Auto slitting, Auto slitting, so if you want to produce the label sticker with knife cutting, RSF-330 label die cutter is your best choose. If you own this label die cutter , no matter small order or batch order, you can finish it as soon as. Taking the high-quality batch orders with high added value to meet the needs of small batch orders in the market, so it is promoting the development of the digital label industry.

  • Roll to Roll
    Roll to Sheet
    8 times faster
    Automatic Segmentation

  • Products specifications
    Attribute name Attribute value
    Feeder Capacity <100mm
    Feeder Vacuum feed with clamps mounted on gantry
    Input Paper Size Maximum 800mm X 600mm
    Input Paper Size Minimum 210mm X 297mm
    Option Bevel Cutting tool, Creasing tool for corrugated boards
    Production Speed 1200 mm/s
    Cutting Height up to 6mm
    Power Consumption 4 KW
    Weight 380 KG
