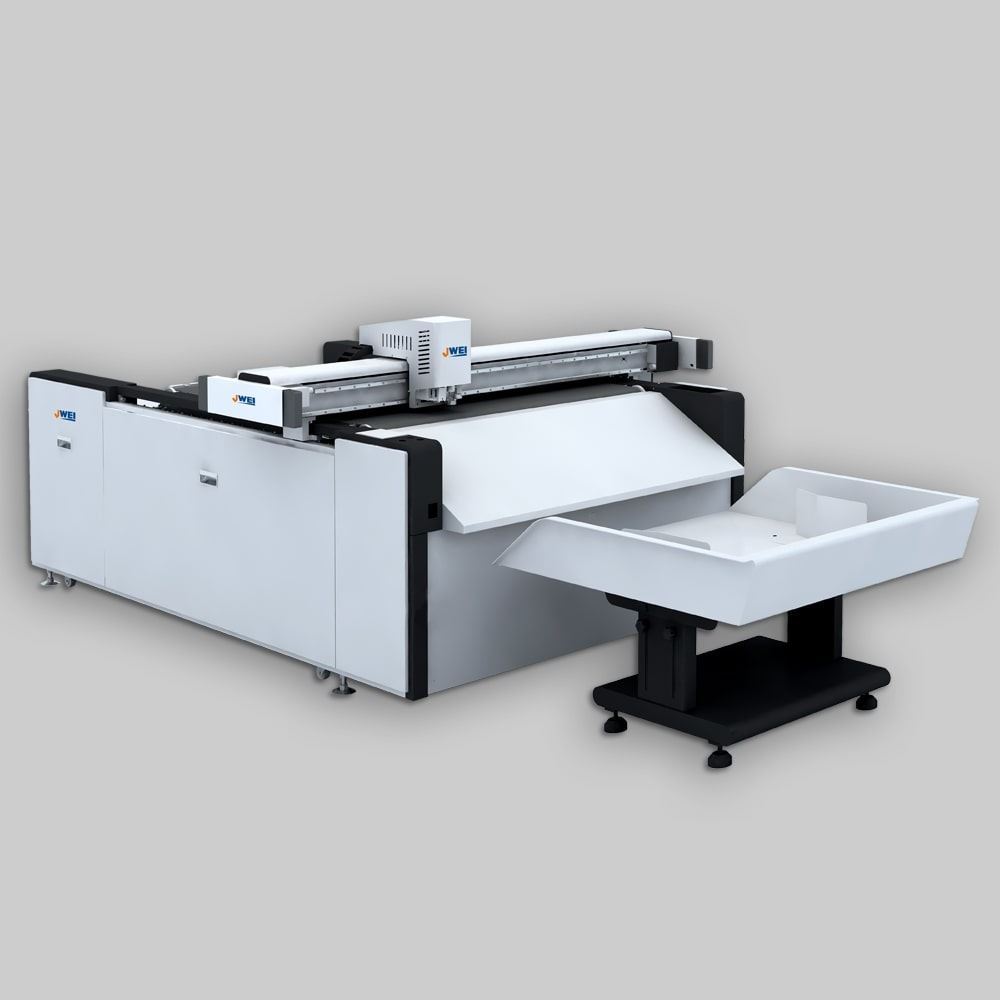

JWEI LST03 II-0912RM Digital Cutting Table

State of the art die-less, customised digital cutting up to 35"×47". This device performs through cutting, Kiss-cutting, creasing & oscillation functions for various applications.

Original Design 1st of the World
Integrated with cutting tool, creasing wheel tool, plotting pen and CCD registration system, JWEI LST03 series digitally cut labels of any shape, folding cartons of any structure directly from your original designs.

Function- For through cutting, Half/kiss cutting, Creasing, V-grooving, perforation processing applications like Stickers, labels, folding cartons tags, cards etc

Air suction feeder with industrial CCD registration system.

No cutting dies
Just send your designed files exported from Adobe Illustrator or CorelDRAW in the form of DXF, PLT, XML or CF2 to JWEI controller for processing, requiring no physical dies, saving cost and time for making dies. Kick the finishing jobs off by simply clicking the “Print” button.

Versatile fast sheet fed production
Designed for short-run on-demand production, LST03 series are highly automated by QR code recognition function for auto retrieving cutting file. Only 15-70 seconds to finish a A3-B2 sheet (depends on complexity of shapes).

New exciting tools.

1. Oscillating tool: for cutting sunboards, corrugated boards KT boards etc up to 6mm.

2. Bevel cutting tool: for V-cut applications in case of paper boards, grey boards etc upto 3mm.

3. Creasing tool for corrugated boards: this tool is specially designed for creasing corrugated boards in rigid packaging.

4. Press & cut tool: spring loaded tool for Full & half cuts within 3mm

SKU Code	Description	UOM	Price	No. of Packs	Quantity	Total Price(INR)	Billing Location	Delete

Features & Benefits:

1. B3 mode with triple pass: device can feed three B3 sheets with automatic feeder and can perform cutting at a time.

2. Rotating tool active head with Motor driven Z axis for notch/joint free circles or similar designs.

3. Cutting thickness: 6 mm

4. Maximum media size: 35” X 47”

5. QR code scanning function allows retrieving cutting files automatically for faster job changeover.

6. Spring loaded Kiss-cut tool: spring action helps to get adjusted to unevenness and minimize sticker sheets wastage

Product Specifications:

Products specifications

Attribute name	Attribute value
Paper Size	Max size up to 900mm X 1200mm, 35" X 47", Min size up to 210mm X 297mm
Paper Capacity	up to 180 MM
Production Speed	1200 mm/s
Cutting Depth	up to 6 mm
Feeder Capacity	max 400 kgs
Controller	M5
Formats	DXF, PLT, PDF, HPGL, XML, CF2, EPS
Power Consumption	6.5 KW
Dimensions (L x W x H)	2598 mm X 1975 mm X 1148 mm
Weight	700 kgs
