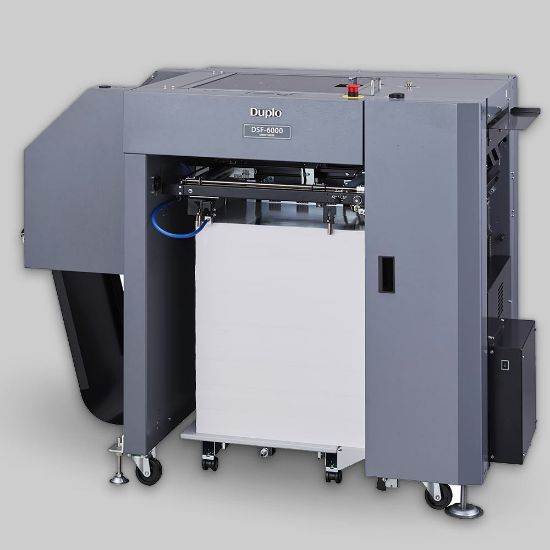

Duplo DSF-6000 Sheet Feeder

The Duplo DSF-6000 Sheet Feeder offers a high stacking capacity of 24” Designed for customers with higher production demands.

    DSF-6000 document sheet feeder is ideal for customers with medium to high production volume demands. It can process pre-collated digital or offset printed documents at a maximum production rate of 600 sheets per minute,which is able to connect systems of DBMS and DBM-600.

     Configurable with the DBM-600 Bookletmaker or iSaddle, the DSF-6000 Sheet Feeder offers the ultimate solution for converting pre-collated digital or offset printed media into high quality booklets at up to 4,500 per hour.

     Equipped with a technologically-advanced Air Management System, the DSF-6000 provides an unsurpassed level of high speed performance that ensures consistent feeding of a wide variety of paper types and weights, from 64 gsm to 300 gsm, at a speed of up to 600 sheets per minute.

     The main tray offers a loading capacity of 24” (610mm), which minimizes reloading by supporting longer run times. Three-side air separation and integrated static eliminator effectively handle the static common with digitally printed media. Optical and ultrasonic sensors accurately detect feed errors, should they occur.

    • Produces up to 4,500 booklets when connected to the DBM-600/T Bookletmaker and Trimmer or iSaddle
    • User-friendly PC Controller software
    • 24" loading capacity
    • Feeds up to 14" x 24" paper using the optional DSF-CFL Cover Feeder
    • Optional Barcode Kit ensures complete set integrity using 1D or 2D barcodes
    • Adapters are available to adapt the DSF-6000 paper cart to the HP Indigo 5500/7000 or Xerox iGen 3/4
    • Produces full-bleed booklets with the optional DKT-200 Two Knife Trimmer or SCC Slit/Cut/Crease module
    • Letter landscape booklets
    • Small size booklets
    • Calendars
    • Corporate Reports
    • Catalogs
    • Brochures
    • Yearbooks
    • Magazines
