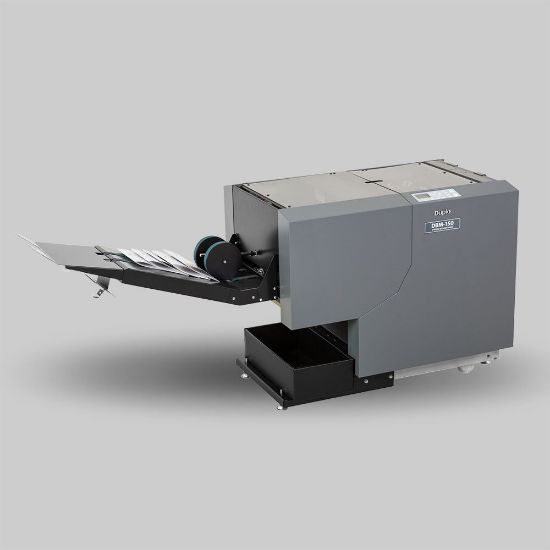

Duplo DBM-150 Bookletmaker

The world’s most compact automatic bookletmaker with speeds up to 2,400 booklets per hour

The DBM-150 is a highly versatile booklet maker capable of standalone/hand-fed operation or connection to a choice of friction or suction collators and Duplo’s DSF-2200digital printed sheet feeder.

The operating speed is up to 2,400 booklets per hour and most of the setup is automatic making. This is a perfect machine for shortrun booklet production.

Featuring the Isaberg Rapid stapler and staple cartridge, the DBM-150 Bookletmaker produces a high quality, flat staple every time. Each cartridge holds 5,000 staples and wear parts are replaced each time the cartridge is changed out, providing a high level of reliability. The DBM-150 Bookletmaker can be operated via the control panel where up to 16 jobs can be saved in memory or via a PC using the optional PC Controller software.

    • Suitable for short volume demands
    • Accepts output from multiple printers
    • Converts pre-collated sets into finished booklets
    • Belt suction feeding with front and side air separation
    • Built-in ultrasonic double feed detection and anti-static device
    • Isaberg Rapid stapler and staple cartridge
    • 16-job memory
    • Optional PC Controller software
    • Calendar
    • Corporate Reports
    • Catalogs
    • Brochures
    • Yearbooks
    • Magazines
  • Products specifications
    Attribute name Attribute value
    Booklet Size (Saddle stapling & Folding) Length 210 to 460 mm Width 120 to 320 mm, Standard size: A5SEF, A4 SEF, A4 LEF, A3 SEF, A3SR SEF, B5 SEF, B4 SEF, LGR SEF, LGL SEF, LTR SEF, LTR LEF, STMT SEF
    Booklet Size (Side Stapling) option* Length 180 to 231 mm Width 200 to 320 mm, Standard size (Side stapling): A4 LEF, B5 LEF, LTR LEF Standard size (Corner stapling): A4 LEF, LTR LEF
    Paper type Fine quality: 64 to 127.9gsm, Art/Coated: 104.7 to 127.9gsm Cover: Fine quality, Art/Coated within 300gsm
    Stapling Thickness Fine Quality: within 2.5mm (Maximum of 25 sheets regardless of paper weight) Art/Coated: within 2.0mm (Maximum of 20 sheets regardless of paper weight)
    Stapling Width 70, 108, 160, 258, and 276mm (2.76, 4.25, 6.30, 10.16 and 10.87inch)
    Staple Capacity 5,000 staples per cartridge
    No. of sheets that can be trimmed 4 to 50 sheets
    Power Consumption 120 to 240 V 50/60 H, DBM-150: 130W 1.2-0.7A, DBM-150 + DBM-150T: 230W 2.2-1.1Az,
    Weight 137kg
    Maximum thickness of booklet Fine quality 2.5mm *2 Art, Coated 2.0mm *2
    Paper Size Min. 200x180 mm - Max. 320x231 mm
